| ブランド名: | UCER |
| モデル番号: | EP200/EP250/EP300 |
| MOQ: | 100メートル |
| 価格: | 交渉可能 |
| 配達時間: | 15～30日 |
| 支払条件: | L/C、D/P、T/T |

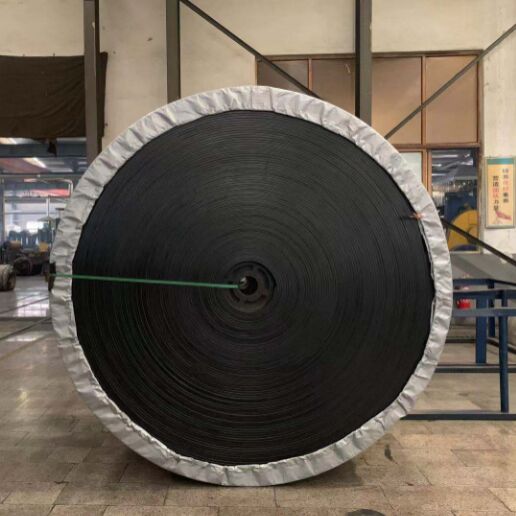

Nylon Rubber Conveyor Belts Bandwidth 400mm
1. Features
1) The conveyor belt exhibits excellent elasticity, impact resistance and wear resistance.
2) It features superior flexibility, enabling easy grooving.
3) It is resistant to mold growth, with no mildew formation.
technical standard:
National Standard GB/T7984-2001
Nylon (NN) conveyor belt:
Covering layer: the tensile strength is not less than 15Mpa, the elongation at break is not less than 350%, the amount of wear is less than or equal to 200mm3.
The full thickness longitudinal elongation at break is not less than 10%, and the full thickness longitudinal reference elongation is not greater than 4%
Adhesive strength between layers of nylon conveyor belt:
| Index item | Between layers | Between cover layer and cloth layer | |
| Covering layer thickness ≤1.5mm | Covering layer thickness>1.5mm | ||
| The average value of the longitudinal sample is not less than | 4.5 | 3.2 | 3.5 |
| The average value of the transverse sample is not less than | 4.5 | 3.2 | 3.5 |
| The highest peak value of all samples is not greater than | 20 | 20 | 20 |
| The lowest peak value of all samples is not less than | 3.9 | 2.4 | 2.9 |
|
|
